 Pollution Monitors
With Analog Data Capturing

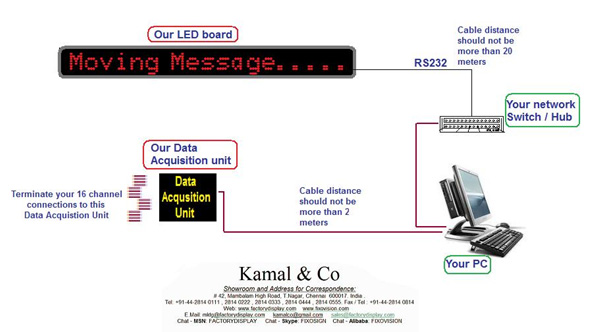

16 channel data logger with remote moving single line bilingual display
as per the following specification / multichannel data logger:
• No. of inputs: 16
• Type of inputs: 4 to 20 ma dc
• Display: 6 digit led
• Digital output I : to remote moving display, RS 485, 9600 baud rate, no parity, 8 bit, 1 stop bit
• Digital output II : RS 232 to pc where data acquistition to be loaded
• Power supply: 230 v ac
• Type of mounting: table top
Remote moving display:
• No. of lines of display: one
• Size of diplay: 5.5 inches
• Matrix size: 16 x 192 per line
• Colour of led: red focus led
• Language displayed: english & tamil
• No. of pages displayed: max 16 pages
• Text to be sent from scanner on rs 485 communication
• Memory provided to store data
• Ms powder coated cabinet with hood shall be provided
• Approximate size of board; 72(w) x 12 (h) x 2 (d)
• Real time clock
|
